CCGW32.51WZ-LS2 TB650

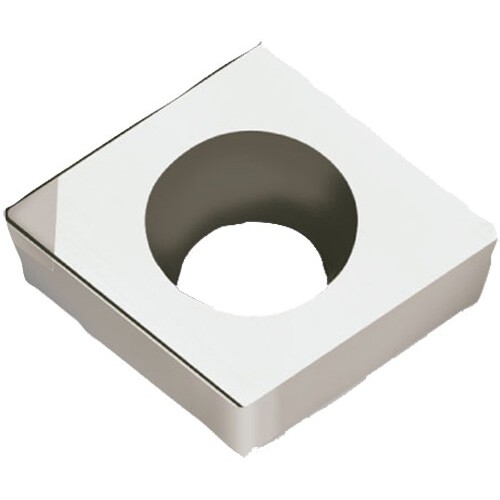

Turning Insert; CCGW3251WZLS2 TB650 ; 3/8″ IC ; 0.016″ Corner Radius
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Fixing Hole Diameter (D1) | 0.1772″ |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CCGW | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.016″ | Number of Cutting Edges | 3 |
| Insert Size | 32.51 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.157″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | MEGACOAT NANO PLUS | Model No | 8866423 |
| Grade | TB650 |
Product Features
| Country of Origin | S.Korea |
