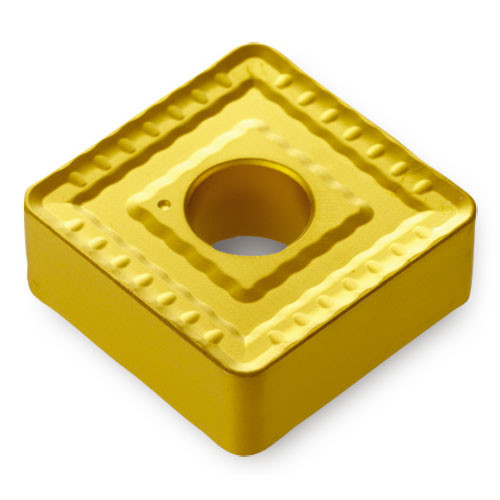

SNMM644HT TT7100
SNMM644HT TT7100
| Insert Style | SNMM | Depth of Cut Maximum (APMX) | 0.354″ |
| Corner Radius (RE) | 0.063″ | Min. Turning Feed (ft(min)) | 0.018″ |
| Insert Size | 644 | Max. Turning Feed (ft(max)) | 0.04″ |
| Cutting Edge Length (L) | 0.687″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | TT7100 | Body Material | Carbide |
| Min D.O.C. | 0.157″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.062
