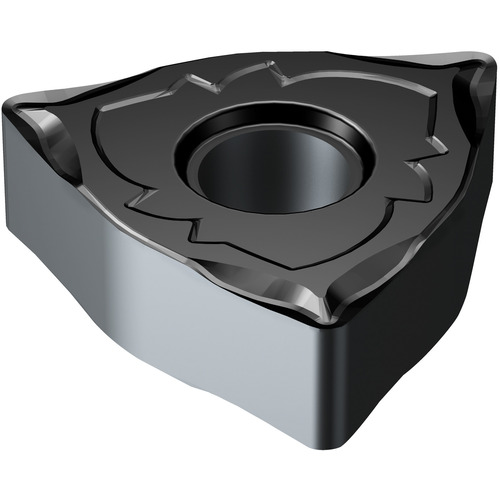

WNMG432SF 1105 TURNING
Turning Insert; WNMG432SF 1105 ; 1/2″ IC ; 0.032″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Hi-Temp Alloys|Stainless Steel|Steel|Non-Ferrous Material | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | WNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.032″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 432 | Chip Breaker Type | SF |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Trigon |
| Cutting Edge Material | Carbide | Series/List # | WNMG 432-SF |
| Coating | TiAlN | Model No | WNMG432-SF |
| Grade | 1105 |
Product Features
| Family Description | 0 | Country of Origin | USA |
Shipping Info
Package Weight
0.243
