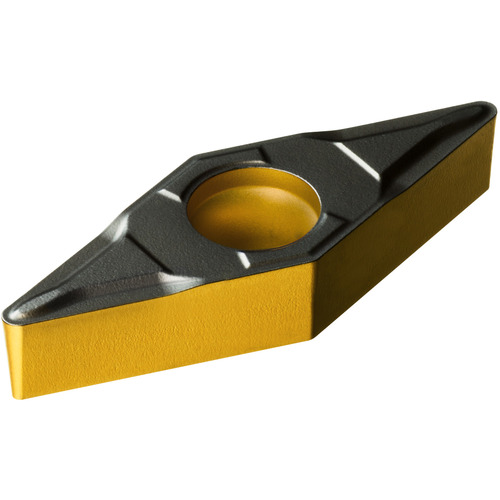

VBMT 220 PF 4325, 0.008″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, TiCN|Al2O3|TiN, Turning Indexable Insert
Turning Insert; 35 Diamond × 1/4″ IC × 0.008″ Corner Radius ; 4325 ; Carbide ; TiCN|Al2O3|TiN
| Applicable Material | Steel | Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | VBMT | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.008″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 220 | Chip Breaker Type | PF |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | 35° Diamond |
| Cutting Edge Material | Carbide | Series/List # | VBMT -PF |
| Coating | TiCN|Al2O3|TiN | Model No | VBMT220-PF |
| Grade | 4325 |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
.084
