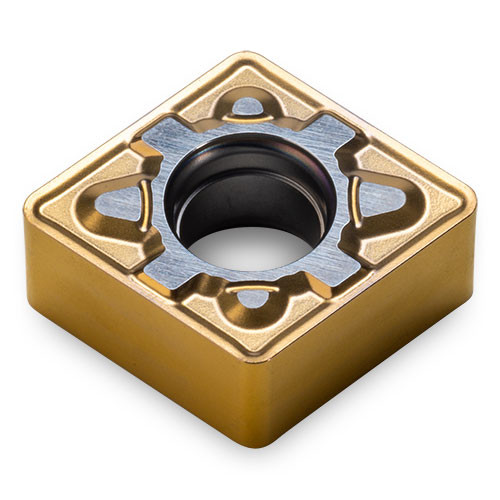

CNMG332EM TT9080
Turning Insert; 60 Triangle ; 0.382″ Length × 3/8″ IC × 0.031″ Corner Radius ; TT9080 ; Carbide ; TiAlN+TiN
| Insert Style | CNMG | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.031″ | Min. Turning Feed (ft(min)) | 0.005″ |
| Insert Size | 332 | Max. Turning Feed (ft(max)) | 0.02″ |
| Cutting Edge Length (L) | 0.382″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN+TiN | Series/List # | CNMG 332-EM |
| Grade | TT9080 | Body Material | Carbide |
| Min D.O.C. | 0.02″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.013
