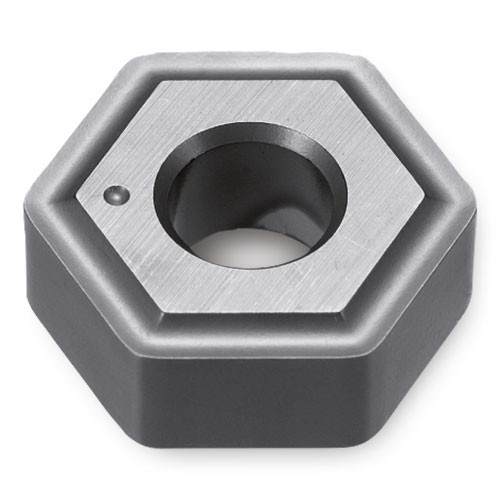

HNMG643SU TT5100
Turning Insert; 60 Triangle ; 0.361″ Length × 3/4″ IC × 0.047″ Corner Radius ; TT5100 ; Carbide ; TiCN+Al2O3

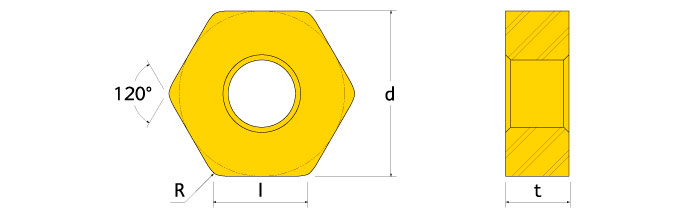

| Insert Style | HNMG | Depth of Cut Maximum (APMX) | 0.2″ |
| Corner Radius (RE) | 0.047″ | Min. Turning Feed (ft(min)) | 0.01″ |
| Insert Size | 643 | Max. Turning Feed (ft(max)) | 0.028″ |
| Cutting Edge Length (L) | 0.361″ | Number of Cutting Edges | 12 |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 120 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Grade | TT5100 | Model No | 8866423 |
| Min D.O.C. | 0.039″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.059
