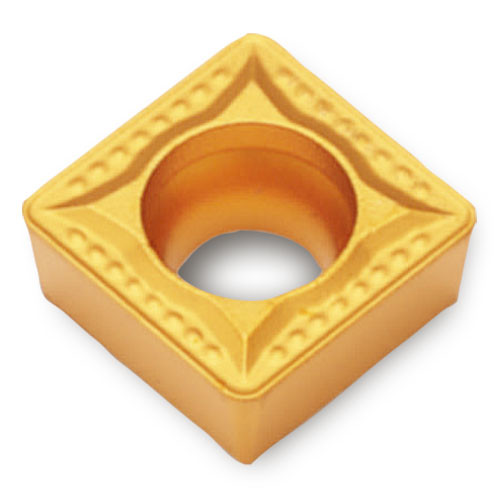

SCMT32.52MT TT5080
Turning Insert; 60 Triangle × 3/8″ IC × 0.031″ Corner Radius ; TT5080 ; Carbide ; TiAlN+AlTiN+TiAlN+TiN
| Insert Style | SCMT | Min. Turning Feed (ft(min)) | 0.005″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.012″ |
| Insert Size | 32.52 | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.156″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 90 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiAlN+TiN | Shape | 60° Triangle |
| Grade | TT5080 | Series/List # | SCMT 32.52-MT |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Min D.O.C. | 0.039″ | Cutting Edge Effective Length (LE) | 0.344″ |
| Depth of Cut Maximum (APMX) | 0.138″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
