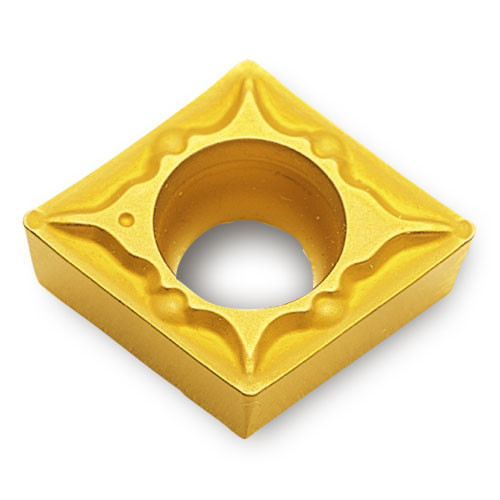

CCMT432FG PV3010
Turning Insert; 60 Triangle ; 0.508″ Length × 1/2″ IC × 0.031″ Corner Radius ; PV3010
| Insert Style | CCMT | Min. Turning Feed (ft(min)) | 0.004″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.01″ |
| Insert Size | 432 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Grade | PV3010 | Shape | 60° Triangle |
| Fixing Hole Diameter (D1) | 0.217″ | Series/List # | ISOI |
| Min D.O.C. | 0.024″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.079″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.010
