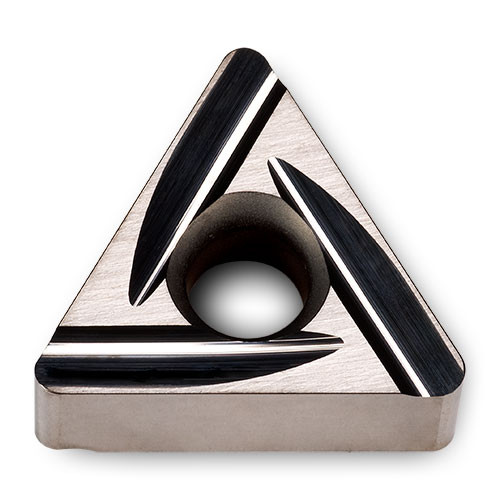

TNGG2.532R CT3000
Turning Insert; 60 Triangle ; 0.541″ Length × 0.313″ IC × 0.031″ Corner Radius ; CT3000 ; Cermet
| Insert Style | TNGG | Min. Turning Feed (ft(min)) | 0.006″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.014″ |
| Insert Size | 2.532 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 0.541″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 0.313″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | CNMG 2.532-Common |
| Grade | CT3000 | Body Material | Carbide |
| Min D.O.C. | 0.051″ | Model No | 8866423 |
| Depth of Cut Maximum (APMX) | 0.138″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.007
