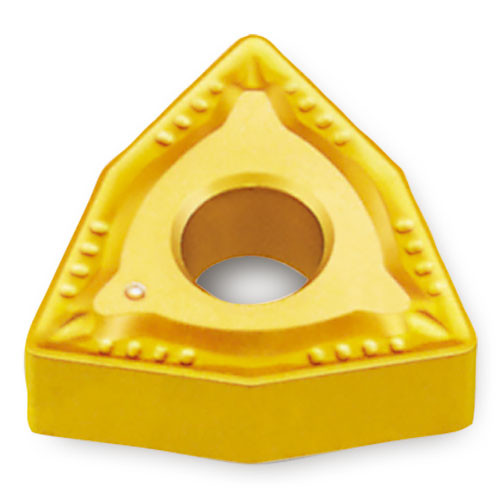

WNMG433WT CT3000
Turning Insert; 60 Triangle ; 0.343″ Length × 1/2″ IC × 0.047″ Corner Radius ; CT3000 ; Cermet
| Insert Style | WNMG | Min. Turning Feed (ft(min)) | 0.008″ |
| Corner Radius (RE) | 0.047″ | Max. Turning Feed (ft(max)) | 0.031″ |
| Insert Size | 433 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 0.343″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Grade | CT3000 | Body Material | Carbide |
| Min D.O.C. | 0.039″ | Model No | 8866423 |
| Depth of Cut Maximum (APMX) | 0.157″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.013
