TPGX220.5R CT3000

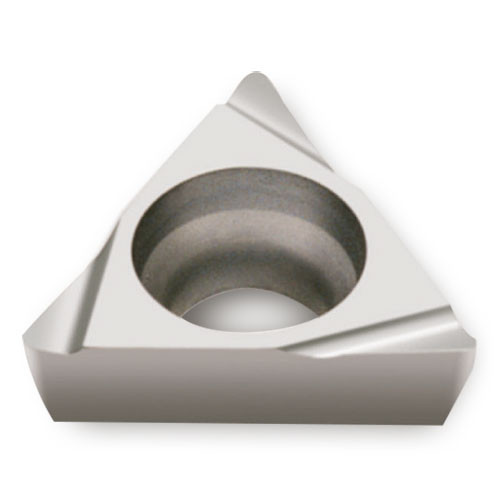

Turning Insert; 60 Triangle ; 0.433″ Length × 1/4″ IC × 0.008″ Corner Radius ; CT3000 ; Cermet
| Insert Style | TPGX | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 3 |
| Insert Size | 220.5 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Length (L) | 0.433″ | Quantity | 10 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | 60° Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | ISOI |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Grade | CT3000 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.138″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.004
