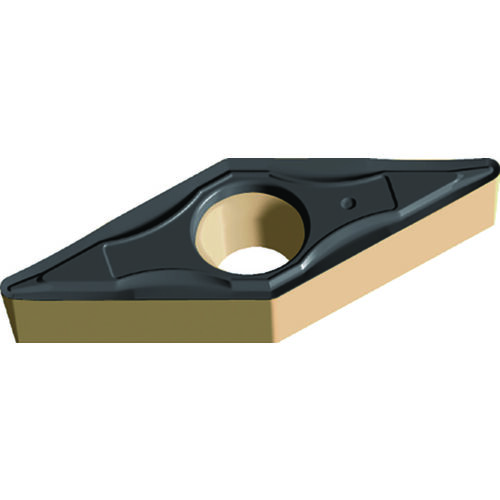

VCMT332-PF4 Grade WSM10
Turning Insert; 35 Diamond ; 21/32″ Length × 3/8″ IC × 1/32″ Corner Radius ; WSM10 ; Carbide ; | ZrCN | TiAlN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | WSM10 |
| Insert Style | VCMT | Fixing Hole Diameter (D1) | 11/64″ |
| Corner Radius (RE) | 1/32″ | Tool Type | Turning Insert |
| Insert Size | 332 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 21/32″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Single-sided|T |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | | ZrCN | TiAlN | Al2O3 | | Series/List # | VCMT-WSM10 |
Product Features
| Family Description | VCMT332-PF4 WSM10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.247
