RCMT1204M0-6RM T9115
Turning Insert; 60 Triangle ; 0.472″ Length × 0.472″ IC × 1/64″ Corner Radius ; T9115 ; Carbide ; TiCN+Al2O3+TiN

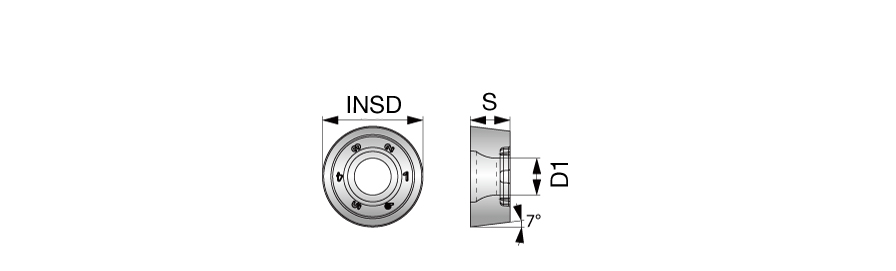

| Applicable Material | Steel | | Min D.O.C. | 0.0394″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Insert Style | RCMT | Min. Turning Feed (ft(min)) | 0.0197 ″/rev |
| Corner Radius (RE) | 1/64″ | Max. Turning Feed (ft(max)) | 0.0394 ″/rev |
| Insert Size | 1204M0 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.472″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.472″ | Chip Breaker Type | 6RS |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | 60° Triangle |
| Grade | T9115 | Series/List # | RCMT 1204M0-6RS |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Square Shank Turning Tools | Model No | 8866423 |
Product Features
| Family Description | Positive 7deg relief ang., M class, round insert, for general use. 6 indexes are available. | Country of Origin | Japan |
