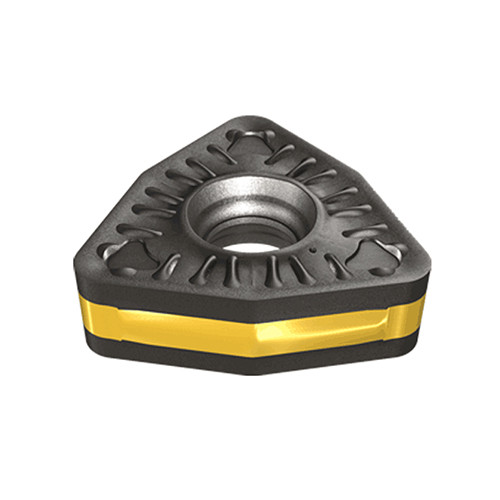

WOMG 643-R3P-IQ IC8150
Turning Insert; 80 Trigon ; 0.513″ Length × 3/4″ IC × 0.047″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | | Min D.O.C. | 0.138″ |

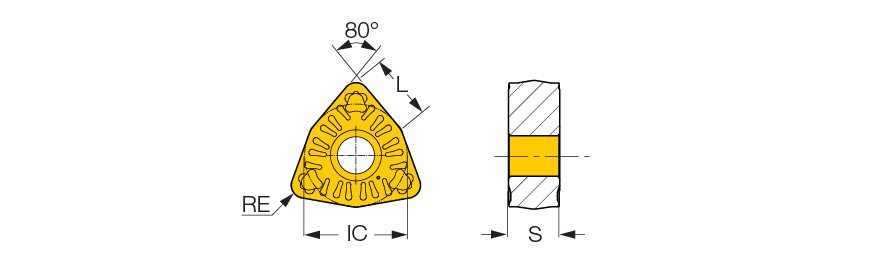

| Insert Style | WOMG | Depth of Cut Maximum (APMX) | 0.315″ |
| Corner Radius (RE) | 0.047″ | Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Insert Size | 643 | Max. Turning Feed (ft(max)) | 0.0315 ″/rev |
| Cutting Edge Length (L) | 0.513″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 80° Trigon |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Model No | 8866423 |
Product Features
| Family Description | Double-sided 7° negative side flank trigon inserts for heavy turning of steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.069
