| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.039″ |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Style | VNMM | Min. Turning Feed (ft(min)) | 0.00472 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Size | 2.5 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.488″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.281″ | Chip Breaker Type | PP |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |

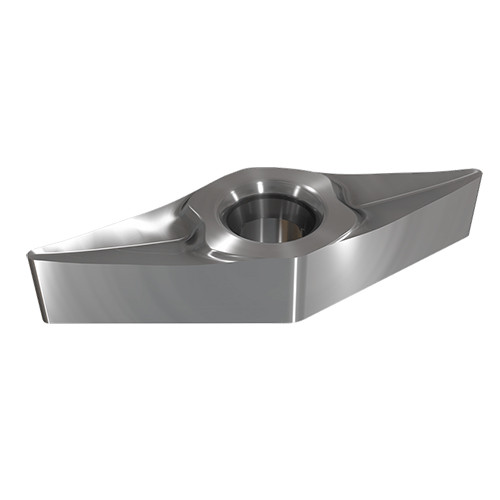

| Coating | TiCN+Al2O3+TiN | Shape | 35° Rhombic |
| Grade | IC9150 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.14″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Single-sided 35° rhombic inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials like aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.011
