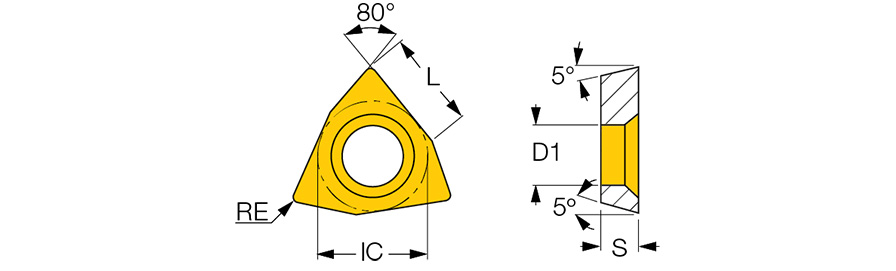

WBGT 520L IC3028
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys| | Tool Type | Turn Positive Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Min D.O.C. | 0.004″ |
| Insert Style | WBGT | Depth of Cut Maximum (APMX) | 0.039″ |
| Corner Radius (RE) | 0.008″ | Max. Turning Feed (ft(max)) | 0.0039 inch/rev |
| Insert Size | 520 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.086″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.063″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.156″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiCN | Series/List # | ISOI |
| Grade | IC3028 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.1772″ |
Product Features
| Family Description | Trigon 5° positive flank inserts with a ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
.0300
