TNMM432RH TT5100

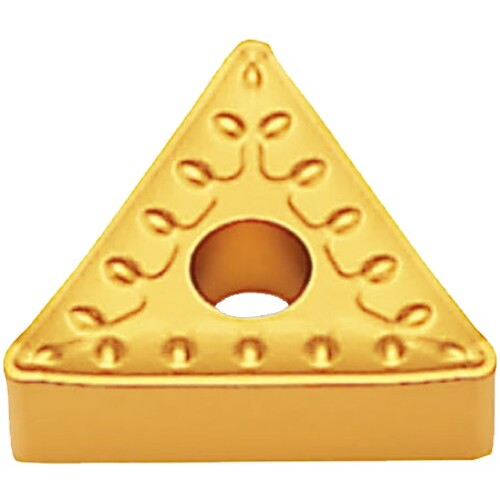

Turning Insert; TNMM432RH TT5100 ; 1/2″ IC ; 0.031″ Corner Radius ; Carbide
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Fixing Hole Diameter (D1) | 0.1772″ |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Tool Type | Turning Insert |
| Insert Style | TNMM | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.031″ | Number of Cutting Edges | 3 |
| Insert Size | 432 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN|Al2O3 | Model No | 8866423 |
| Grade | TT5100 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.24
