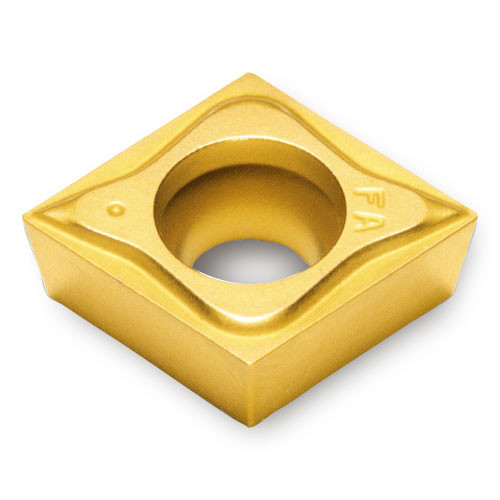

CCMT21.51FA TT5100
Turning Insert; 60 Triangle ; 0.254″ Length × 1/4″ IC × 0.016″ Corner Radius ; TT5100 ; Carbide ; TiCN+Al2O3
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.002″ |
| Insert Size | 21.51 | Max. Turning Feed (ft(max)) | 0.006″ |
| Cutting Edge Length (L) | 0.254″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 80 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Shape | 60° Triangle |
| Grade | TT5100 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.11″ | Body Material | Carbide |
| Min D.O.C. | 0.004″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.004
