10MMX1MM RAD SC C/R EM-ALCRN E-code # S76310.0XR1.0

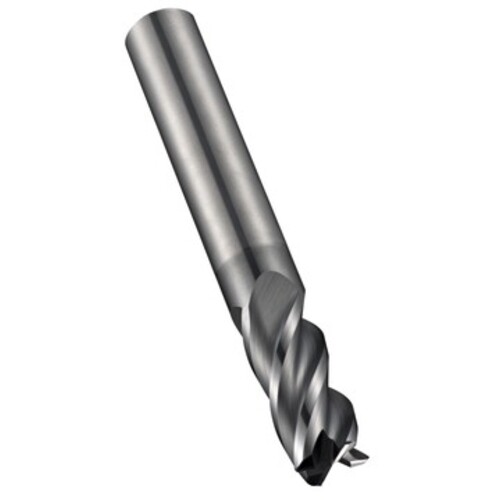

SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 70 mm OAL ; 4 FL ; Carbide ; AlCrN ; Series S763
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Coating | AlCrN |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 22 mm | Series/List # | S763 |
| Overall Length (OAL) | 70 mm | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | E-code # S76310.0XR1.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.19
