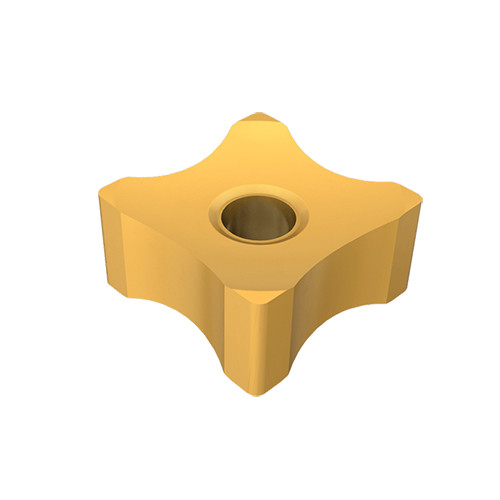

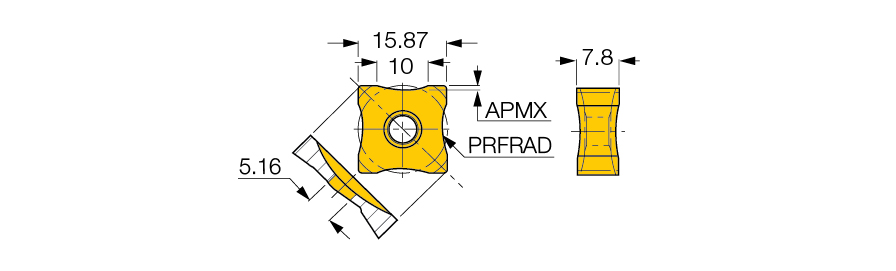

SNMX 150708R-30 IC8150
Turning Insert; Square ; 15.87 mm Length × 15.87 mm IC × 30 mm Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0 mm |
| Application | | Ext. Pipe Skiving | | Depth of Cut Maximum (APMX) | 0.42 mm |
| Insert Style | SNMX | Min. Turning Feed (ft(min)) | 0 mm/rev |
| Corner Radius (RE) | 30 mm | Max. Turning Feed (ft(max)) | 0 mm/rev |
| Insert Size | 150708 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 15.87 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 7.8 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 15.87 mm | Chip Breaker Type | M |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Shape | Square |
| Grade | IC8150 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 5.16 mm | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | Pipe skiving inserts with a positive rake used to remove burr on welded tubes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.046
