16MMX3MM RAD SC 4FL MED EM-TISIN E-code # S52316.0XR3.0

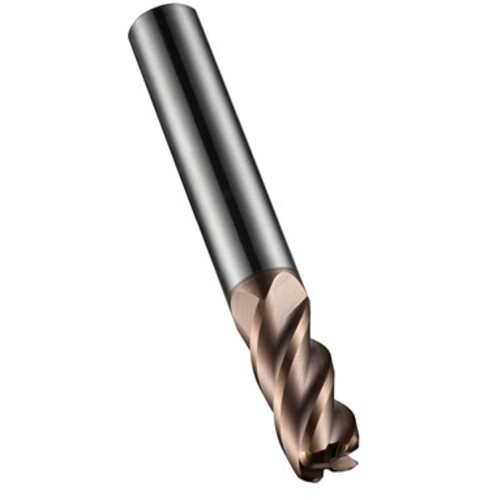

SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 90 mm OAL ; 4 FL ; Carbide ; TiSiN ; Series S523
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Coating | TiSiN |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 32 mm | Series/List # | S523 |
| Overall Length (OAL) | 90 mm | Corner Radius (RE) / Chamfer Width (CHW) | 3 mm |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | E-code # S52316.0XR3.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.19
