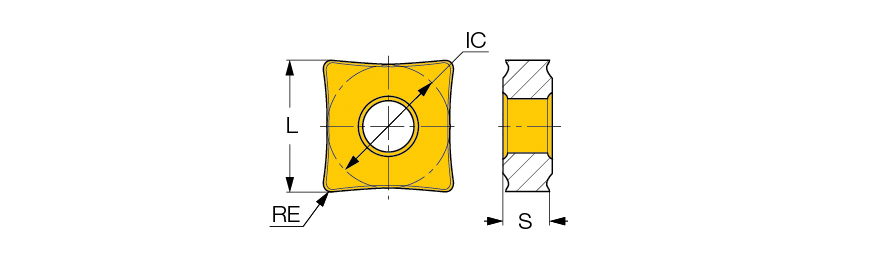

QNMG 332-PP IC830
Turning Insert; Q ; 0.406″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.039″ |
| Application | | Ext. 80° Q#MG 95° Approach | Ext. 80° Q#MG 95°Approach Face | Ext. 90°Square 45°Face&Turn Ap | Int. 80° Q#MG 95° Approach | Int. 80° Q#MG 95°Approach Face | | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Style | QNMG | Min. Turning Feed (ft(min)) | 0.00551 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | 332 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.406″ | Chip Breaker Type | PP |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Q |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided insert with four 80° corners, very positive rake, sharp- and positive-radial edge. For heat-resistant alloys, stainless steel, aluminum alloys, and soft, low carbon steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.015
