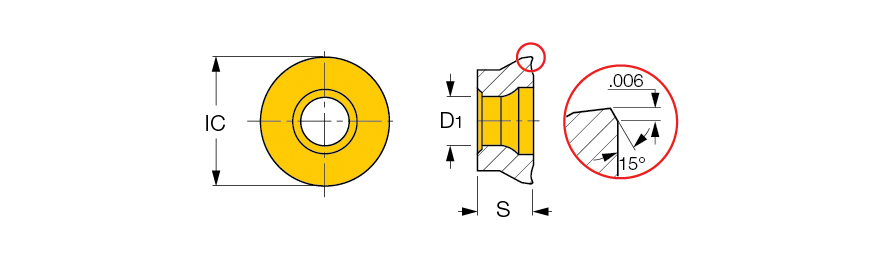

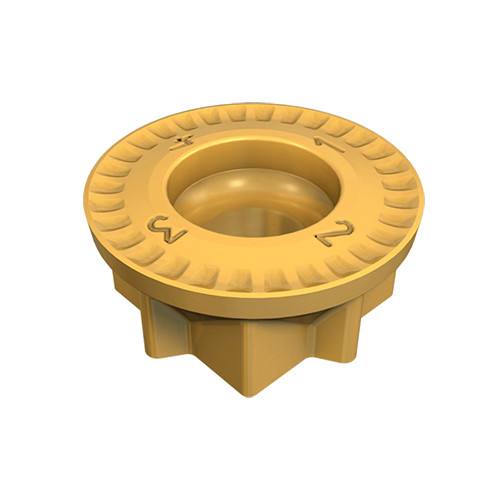

RC90MT 1205M0-SM IC830
Turning Insert; Round x 0.472″ IC × 0.2362″ Corner Radius ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 0.236″ |
| Application | | Ext. Round Face & Turn | Int. Round Face & Turn | | Min. Turning Feed (ft(min)) | 0.01181 ″/rev |
| Insert Style | RC90 | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Corner Radius (RE) | 0.2362″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | MT 1 | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.197″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.472″ | Chip Breaker Type | SM |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN+TiN | Shape | Round |
| Grade | IC830 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.177″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
| Min D.O.C. | 0.079″ |
Product Features
| Family Description | Single-sided round insert. Used for semi-roughing and roughing applications on a wide range of materials (part of the CHAMELEON multifunction system). | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.009
