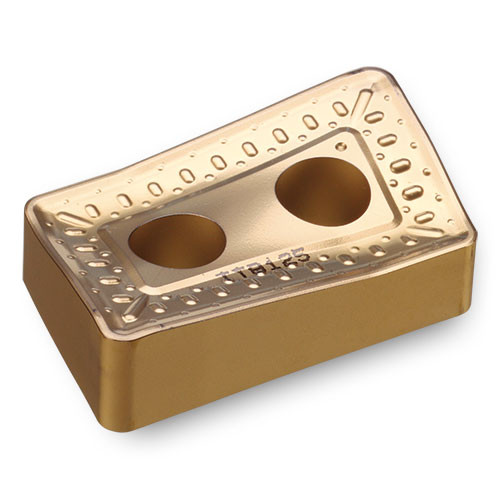

LNMM401224R-HX TT8125B

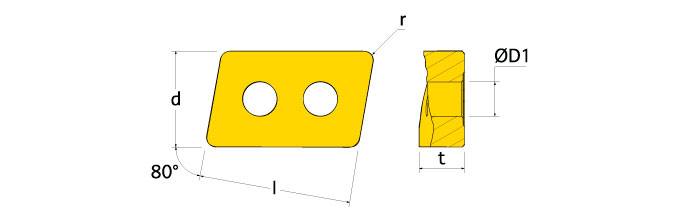

Turning Insert; 60 Triangle ; 1.574″ Length × 0.094″ Corner Radius
| Insert Style | TPGH | Max. Turning Feed (ft(max)) | 0.059″ |
| Corner Radius (RE) | 0.094″ | Number of Cutting Edges | 2 |
| Insert Size | 321 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Length (L) | 1.574″ | Quantity | 10 |
| Insert Thickness (S) | 0.46″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 60° Triangle |
| Fixing Hole Diameter (D1) | 0.36″ | Series/List # | ISOI |
| Min D.O.C. | 0.236″ | Insert Width (W1) | 1″ |
| Depth of Cut Maximum (APMX) | 1.26″ | Body Material | Carbide |
| Min. Turning Feed (ft(min)) | 0.028″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.026
