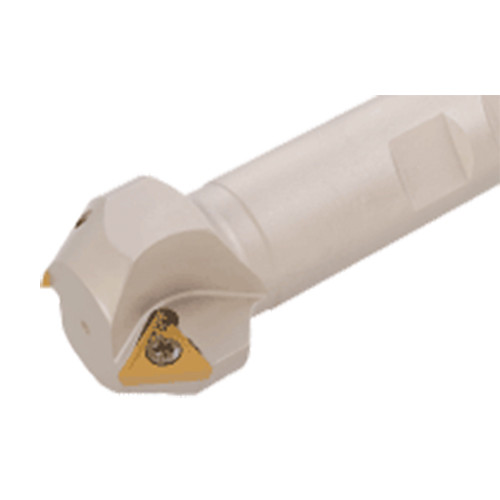

E60 D1.00-W .75
Indexable End Mill; 1″ Dia. × 0.48″ LOC × 3/4″ Shank Dia. × 3.54″ OAL ; 2 FL ; Weldon Shank ; 60 Degrees

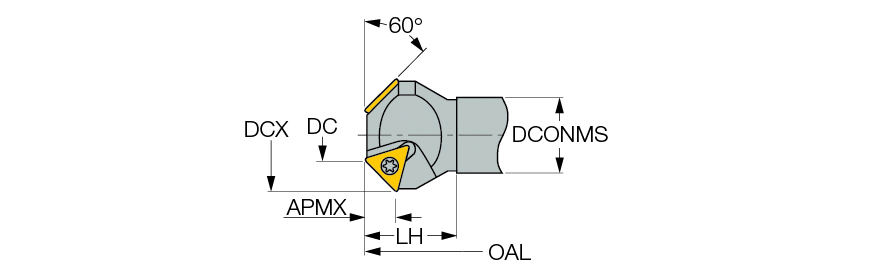

| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 2.524″ |
| Cutting Diameter (DC) | 1″ | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.48″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.54″ | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | | Countersinking | Slanted Shoulder & Chamfer | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | TPMT 2 | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.6 Lbs | Cutting Diameter Maximum (DCX) | 1.56″ |
| Head Length (LH) | 1.46″ |
Product Features
| Family Description | 60° chamfering endmills. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.793
