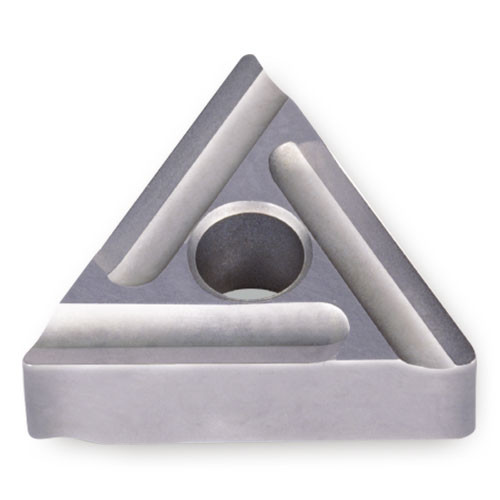

TNMG331L-FS TT8125B
Turning Insert; 60 Triangle ; 0.65″ Length × 3/8″ IC × 0.016″ Corner Radius
| Insert Style | TPGH | Max. Turning Feed (ft(max)) | 0.012″ |
| Corner Radius (RE) | 0.016″ | Number of Cutting Edges | 6 |
| Insert Size | 321 | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Length (L) | 0.65″ | Quantity | 10 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | 60° Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | ISOI |
| Min D.O.C. | 0.031″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.118″ | Model No | 8866423 |
| Min. Turning Feed (ft(min)) | 0.006″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.018
