E75A D1.50-W1.00

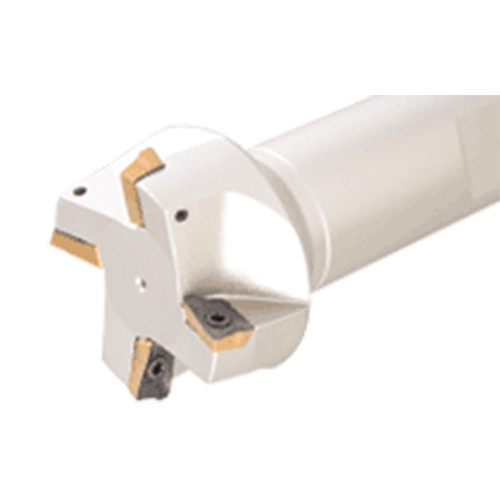

Indexable End Mill; 1-1/2″ Dia. × 0.15″ LOC × 1″ Shank Dia. × 4″ OAL ; 4 FL ; Weldon Shank ; 75 Degrees

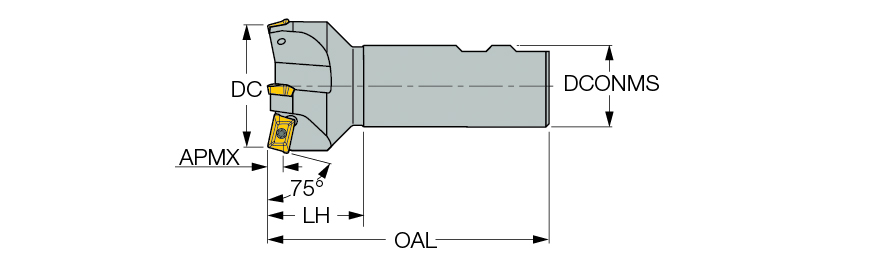

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1.18″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 4 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.15″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Slanted Shoulder & Chamfer | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | APCT 100302R-HM | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.98 Lbs |
Product Features
| Family Description | HELIMILL, 75° endmills with AP..-1003... inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.175
