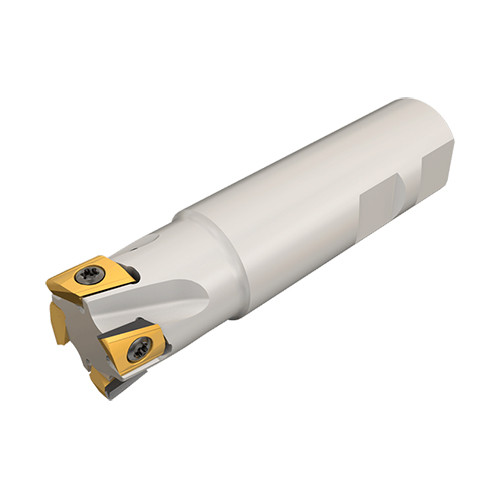

T290 ELN D1.0-3W1.0-10-XL
Indexable End Mill; 1″ Dia. × 0.394″ LOC × 1″ Shank Dia. × 5″ OAL ; 3 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 1.22″ |
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 3.859″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.394″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 5″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | T290 LNHT 100405TR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.95 Lbs |
Product Features
| Family Description | Endmills carrying tangentially clamped inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.188
