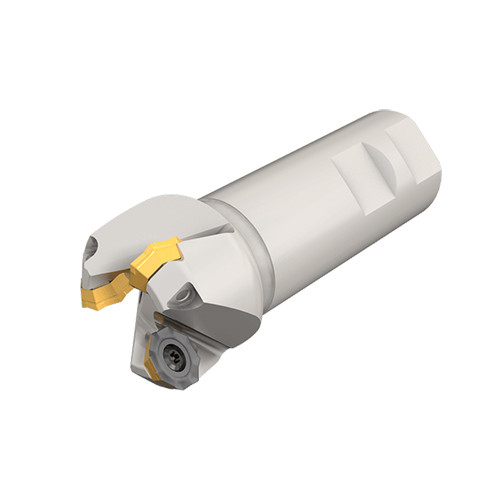

HOE D1.25-03-W1.25-R06
Indexable End Mill; 1-1/4″ Dia. × 0.217″ LOC × 1-1/4″ Shank Dia. × 4.05″ OAL ; Weldon Shank ; 42 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Functional Length (LF) | 2.859″ |
| Cutting Diameter (DC) | 1.15″ | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.1″ | Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Overall Length (OAL) | 4″ | Diameter | 1.135″ |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5.9 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | OEMT 060405AER-76 | Cutting Diameter Maximum (DCX) | 1.62″ |
| Weight of Item (WT) | 1.28 Lbs |
Product Features
| Family Description | Endmills carrying octagonal, square and round inserts. | Country of Origin | Israel |

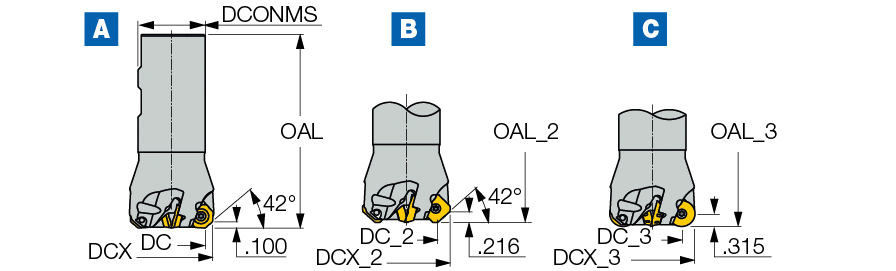

| Remarks | A - with OEM. 060405... insert B - with SECT/SEMT 1404... insert C - with REM. 1505... round insert |
Shipping Info
Package Weight
1.565
