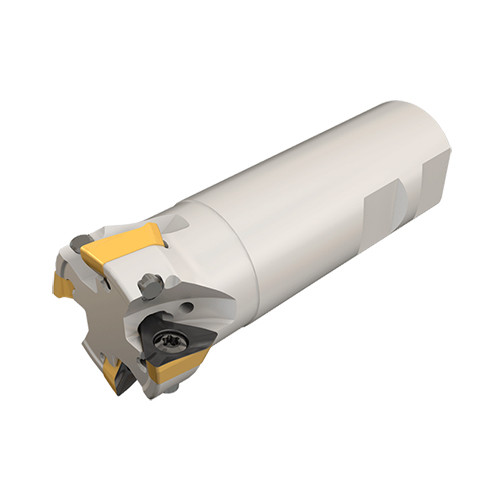

HM390 ETD D1.5-3-W1.25-15
Indexable End Mill; 1-1/2″ Dia. × 0.512″ LOC × 1-1/4″ Shank Dia. × 4″ OAL ; 3 FL ; Weldon Shank ; 90 Degrees

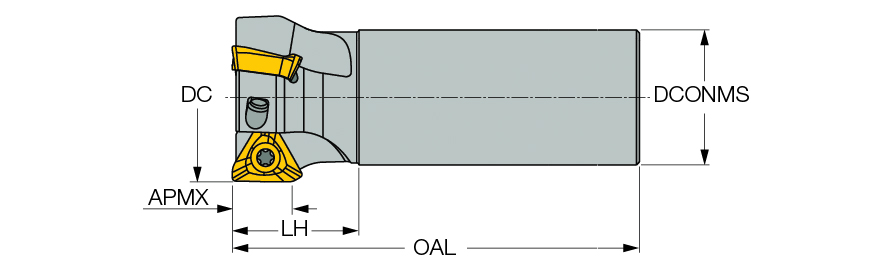

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1.18″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.512″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.14 Lbs |
Product Features
| Family Description | 90° endmills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by .04 |
Shipping Info
Package Weight
1.137
