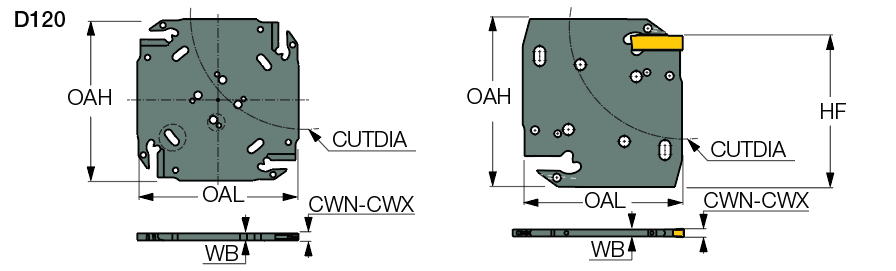

| Body Width (WB) | 0.1575″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.197″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.197″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.228″ |
| Overall Length (OAL) | 2.535″ | Cutting Direction (HAND) | Neutral |
| Overall Height (OAH) | 2.535″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 2.402″ |
| Application | | Ext. Grooving | Parting | Y Axis Parting & grooving | |

Product Features

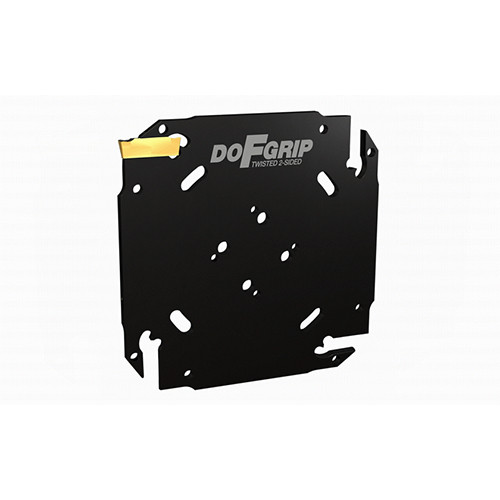

| Family Description | Parting and grooving square adapters carrying DO-GRIP inserts | Country of Origin | Israel |
| Remarks | When using .079 and .118 double-sided inserts, the depth of cut is limited up to .75. For larger depth, use a DGNM type single-ended insert. |
Shipping Info
Package Weight
0.357
