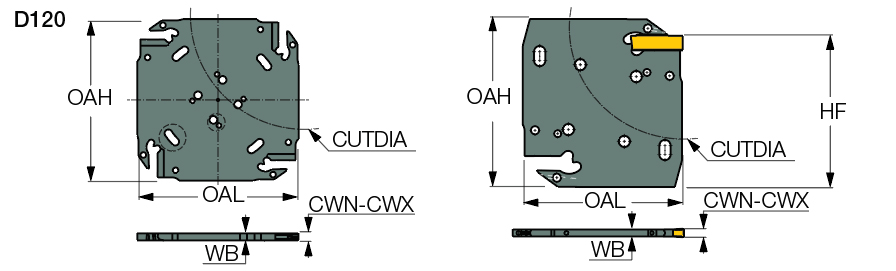

| Body Width (WB) | 1.72 mm | Application | | Ext. Grooving | Parting | |
| Cutting Width Minimum (CWN) | 1.9 mm | Shank Standard | Square |
| Cutting Width Maximum (CWX) | 2.5 mm | Body Material | Steel |
| Overall Length (OAL) | 50 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 52 mm |
| Overall Height (OAH) | 50 mm | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Metric |
Product Features
| Family Description | Parting and grooving square adapters carrying DO-GRIP inserts | Country of Origin | Israel |
| Remarks | When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert. |
Shipping Info
Package Weight
0.185
