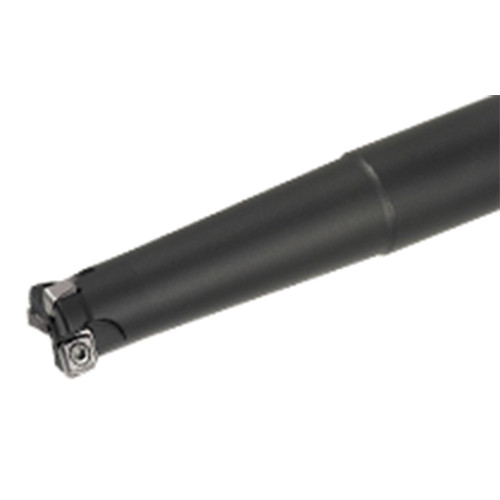

E93CN D.750-3L60C.750-07
Indexable End Mill; 3/4″ Dia. × 0.2″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 3 FL ; Round Shank ; 93 Degrees

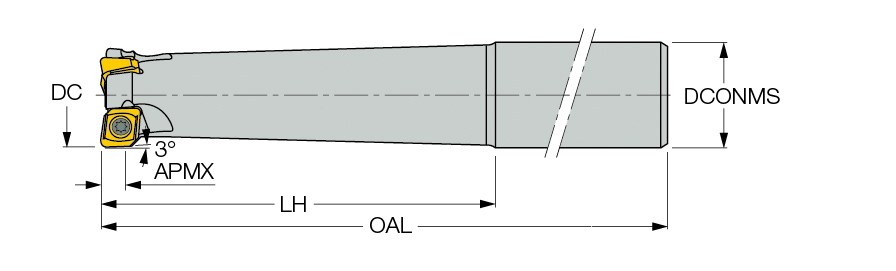

| Cutting Diameter (DC/DCX) | 3/4″ | Weight of Item (WT) | 0.63 Lbs |
| Cutting Diameter (DC) | 3/4″ | Head Length (LH) | 3″ |
| Cutting Item Count (CICT) | 3 | Tool Type | Toroidal endmills |
| Depth of Cut Maximum (APMX) | 0.2″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 6″ | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 93 Degrees |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Undercutting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | CNHT 070315 | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Toroidal, endmills carrying CNHT...and ENHT...inserts (TORMILL). Used for undercutting, for the finish cut of sculptured surfaces, for steep or vertical walls, thin walls, long and unsupported workpieces and parts with non-rigid clamping. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info |
