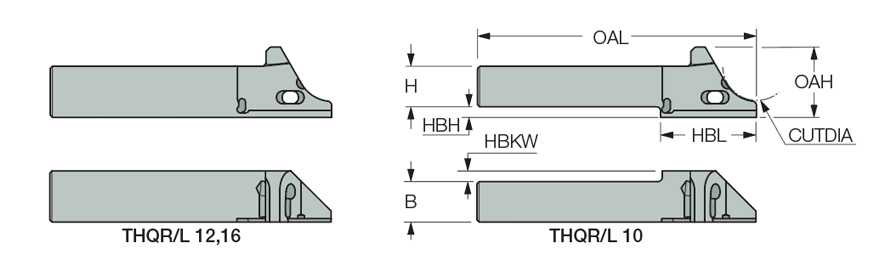

| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 16 mm |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 16.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 89 mm | Head Bottom Offset Height (HBH) | 2 mm |
| Cutting Position | External | Tool Assembly Length (LTA) | 33.5 mm |
| Shank Standard | Square |
Product Features

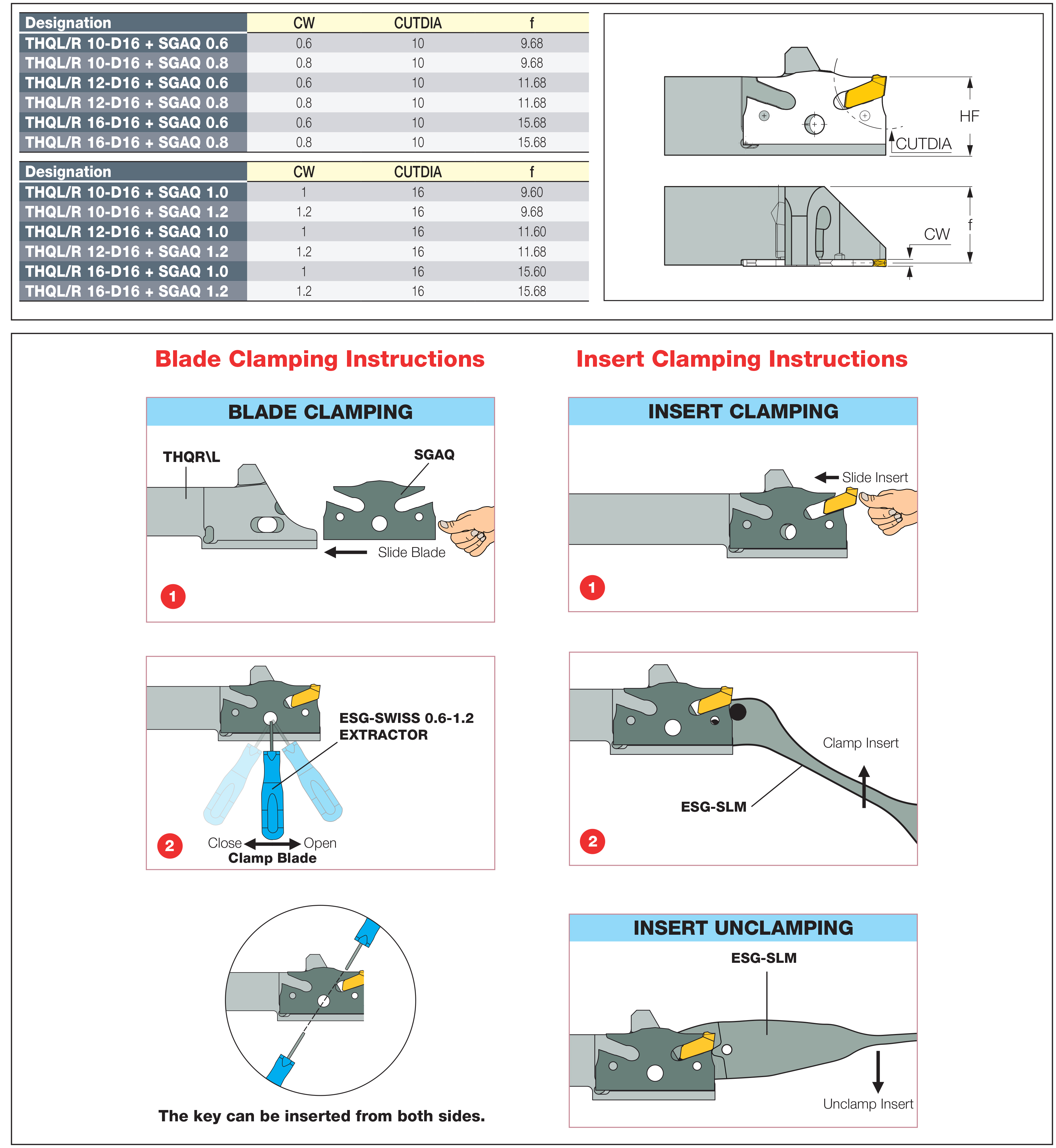

| Family Description | Parting and Grooving holder for a SELF-GRIP mini blades (SGAQ), suitable for swiss-type machines | Country of Origin | Israel |
| Remarks | For [f] see more info |
Shipping Info
Package Weight
0.262
