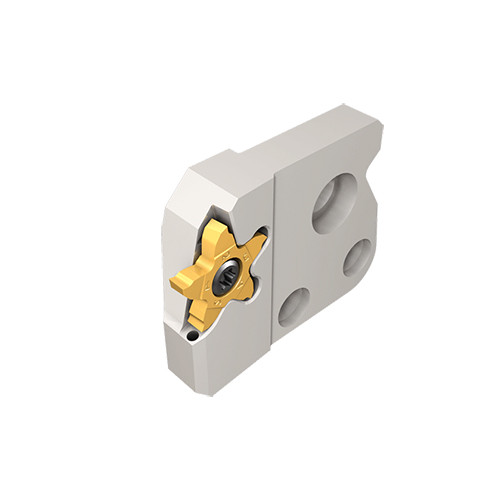

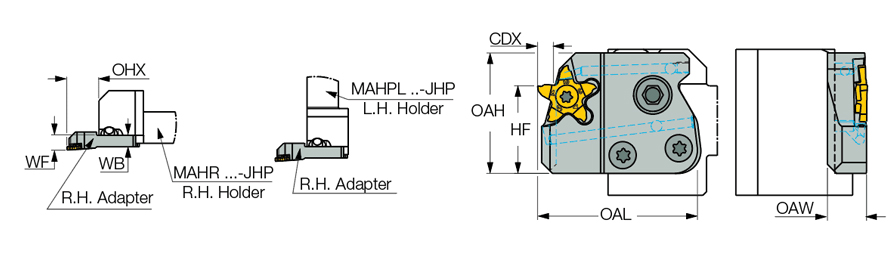

PCADRS 17-JHP
Parting Off Holder; 1.724″ OAL × 0.01″ CW Min. × 1/8″ CW Max. × 0.157″ Max Depth × 1.299″ OAH ; Steel
| Body Width (WB) | 0.276″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.01″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1/8″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 1.724″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.157″ | Measurement Type | Inch |
| Overall Height (OAH) | 1.299″ | Functional Width (WF) | 0.352″ |
| Cutting Position | External | Body Width_2 (WB_2) | 0.276″ |
| Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | | Tool Assembly Length (LTA) | 2.056″ |
Product Features
| Family Description | Adapters with high-pressure coolant holes for PENTACUT 17 | Country of Origin | Israel |
| Remarks | CDX and CUTDIA according to insert limitation |
Shipping Info
Package Weight
0.218
