FCIVOR-0500-094

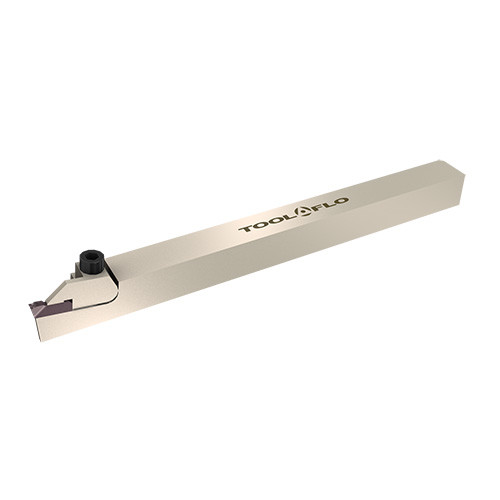

Parting Off Holder; 6″ OAL × 1.2 mm CW Min. × 1.2 mm CW Max. × 0.531″ Max Depth ; Steel
| Shank Height (H) | 1/2″ | Cutting Position | External |
| Shank Width (B) | 1/2″ | Shank Standard | Square |
| Body Width (WB) | 0.9 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 1.2 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1.2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 1.063″ |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Head Length (LH) | 1″ | Functional Width (WF) | 0.094″ |
| Cutting Depth Maximum (CDX) | 0.531″ |
Product Features
| Family Description | External Cut Off Holder for FC inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.42
