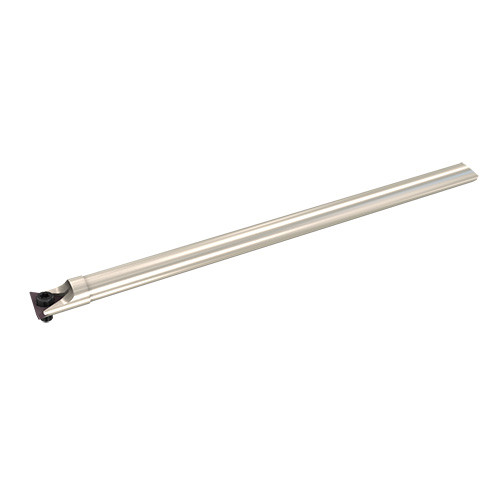

FCBI-187-4-5R

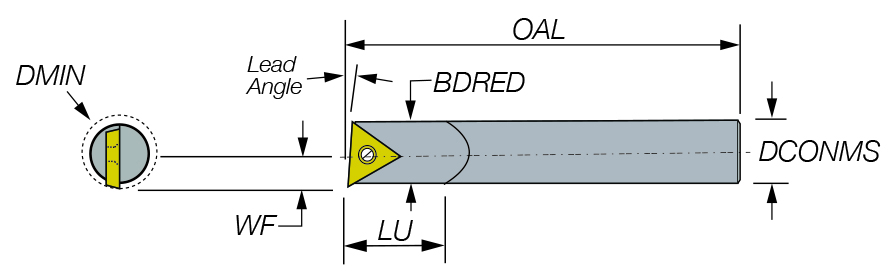

Int. Turning Tool ; 3-7/8″ OAL ; 0.187″ Shank Dia. ; 0.275″ Min Bore Dia. ; Carbide
| Connection Diameter Machine Side (DCONMS) | 0.187″ | Application | | Int Boring Bantam | |
| Overall Length (OAL) | 3-7/8″ | Frontal Edge Angle | 5 Degrees |
| Functional Width (WF) | 0.126″ | Body Material | Carbide |
| Master Insert Identification (MIID) | TDAB ¦ TDCG | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.275″ | Neck Diameter (DN) | 0.203″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Internal Carbide 5° lead Boring Bar for TDAB style Bantam inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.000
