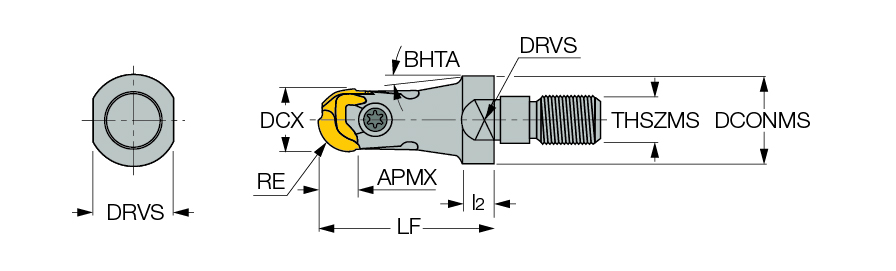

CDP D20-M10 *
| Cutting Diameter (DC/DCX) | 0.787″ | Functional Length (LF) | 1.575″ |
| Cutting Diameter (DC) | 0.787″ | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 2 | Connection Thread Nominal Size Machine Side (THSZMS) | M10 |
| Depth of Cut Maximum (APMX) | 0.543″ | Drive Size (DRVS) | 0.591″ |
| Overall Length (OAL) | 130 mm | Flute Count (NOF) | 2 |
| Shank Type | Round | Corner Radius (RE) | 0.3937″ |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Profiling | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | CRF D200-QF | Measurement Type | Inch |
| Weight of Item (WT) | 0.14 Lbs | Body Material | Steel |
| Head Length (LH) | 30 mm | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Ball nose endmills (HELIBALL) with FLEXFIT threaded adaptation. | Country of Origin | Israel |
| Remarks | For adaptation, click on "More Info". When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.342
