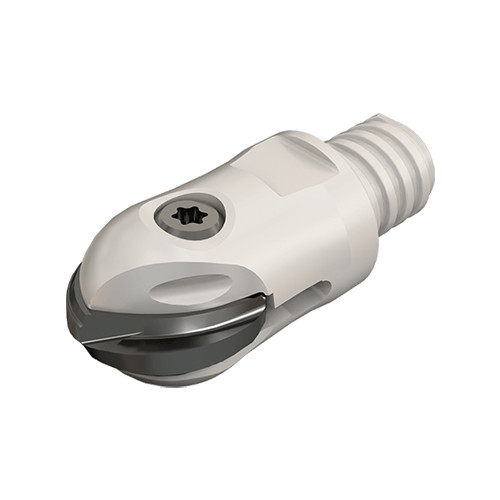

HCM D16/.62-MMT10
Indexable End Mill; 0.63″ Dia. × 0.4055″ LOC × 0.598″ Shank Dia. × 1.429″ OAL ; 2 FL

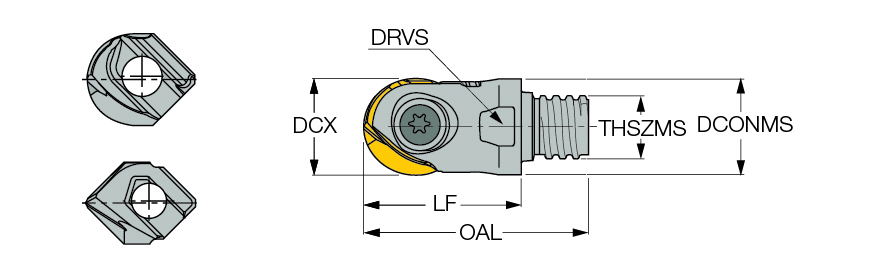

| Cutting Diameter (DC/DCX) | 0.63″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Diameter (DC) | 0.63″ | Drive Size (DRVS) | 0.512″ |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.4055″ | Torque (TQ) | 69 lbfxin |
| Overall Length (OAL) | 1.429″ | Corner Radius (RE) | 0.315″ |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Countersinking | Drill Mill | Profiling | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.598″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | HCR D160-QP | Measurement Type | Inch |
| Weight of Item (WT) | 0.06 Lbs | Body Material | Steel |
| Functional Length (LF) | 0.984″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Tool Type | Ball nose endmills | Cutting Diameter Maximum (DCX) | 0.63″ |
Product Features
| Family Description | Ball nose multifunction endmills with a MULTI-MASTER threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries | Country of Origin | Israel |

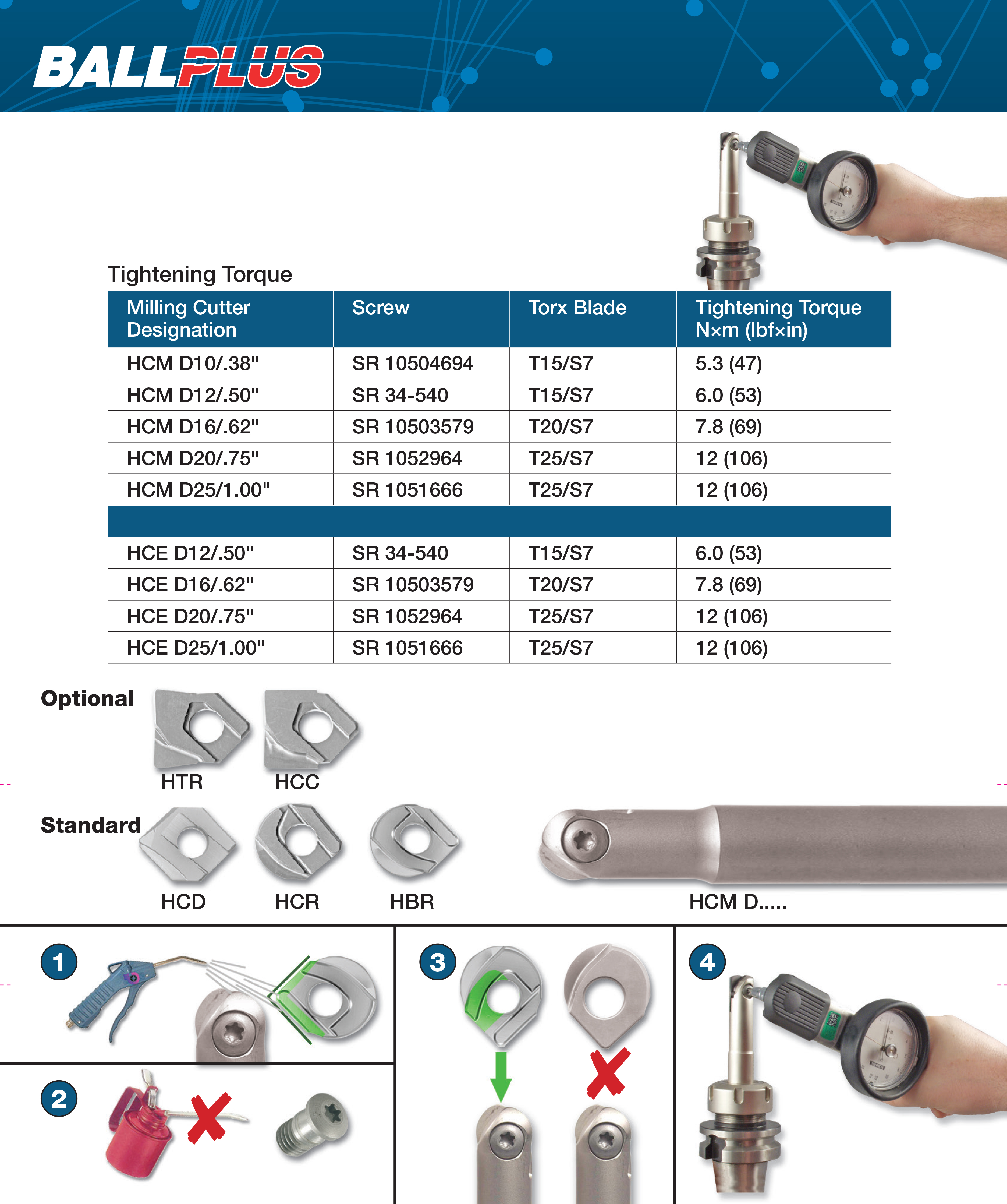

| Remarks | The dimensions are for HBR inserts Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation click on More Info |
Shipping Info
Package Weight
0.269
