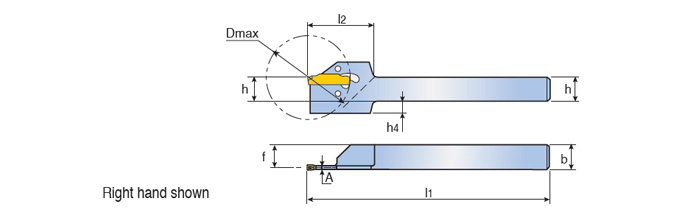

TGEL 2525-4
| Shank Height (H) | 25 mm | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 25 mm | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 3.2 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 1.2 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1.2 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 150mm | Work Piece Parting Diameter Maximum (CUTDIA) | 15 mm |
| Head Length (LH) | 33 mm | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 9 mm | Measurement Type | Metric |
| Cutting Position | External |
Product Features
| Family Description | Integral-shank parting and grooving tool holder. | Country of Origin | Israel |
