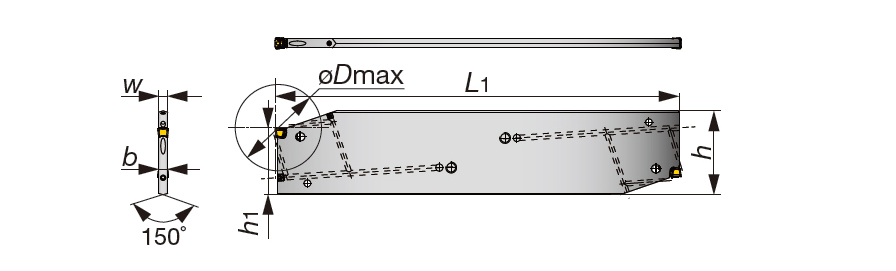

EGP32-6D-CHP
Parting Off Holder; 6.299″ OAL × 1.2 mm CW Min. × 1.2 mm CW Max. × 4.724″ Max Depth × 9 mm OAH ; Steel
| Shank Height (H) | 1.26″ | Cutting Position | External |
| Shank Width (B) | 0.205″ | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.9 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 1.2 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1.2 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 6.299″ | Work Piece Parting Diameter Maximum (CUTDIA) | 15 mm |
| Head Length (LH) | 14 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 4.724″ | Measurement Type | Metric |
| Overall Height (OAH) | 9 mm |
Product Features
| Family Description | Blades for external deep grooving & parting, with channels for high pressure coolant. | Country of Origin | Japan |
| Remarks | Wrench should be ordered separately. |
Shipping Info
Package Weight
0.45
