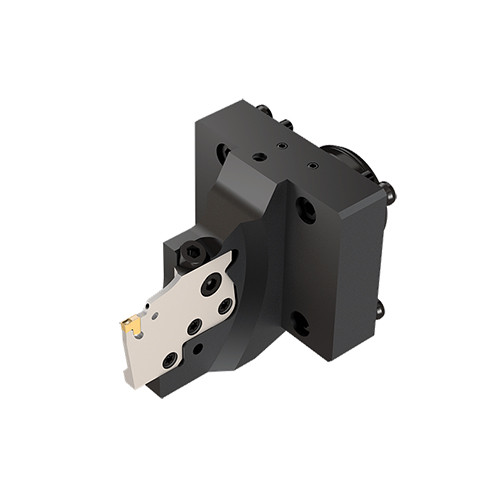

TR45TNL MAHDN-R-XL-JHP

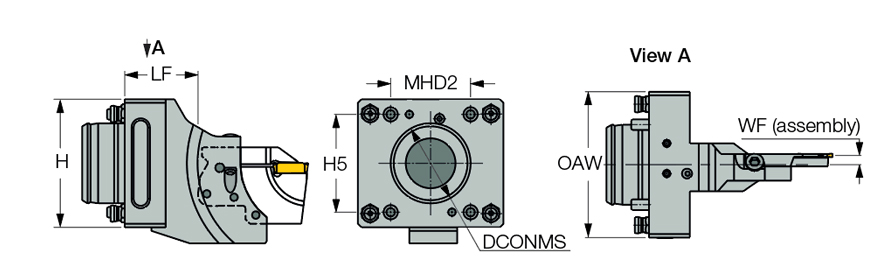

| Shank Height (H) | 2.835″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 1.626″ | Connection Diameter Machine Side (DCONMS) | 1.772″ |
| Cutting Position | External | Measurement Type | Inch |
| Shank Standard | Square | Functional Width (WF) | 0.236″ |
| Body Material | Steel | Tool Assembly Length (LTA) | 1.297″ |
Product Features
| Family Description | Toolholders for Traub TNL16 to TNL18 / TNL32 machines with internal coolant supply for MODULAR-GRIP-XL adapters. | Country of Origin | Germany |
| Remarks | All trademarks and logos are the property of their respective companies |
Related Documentation
All trademarks and logos are the property of their respective companies
