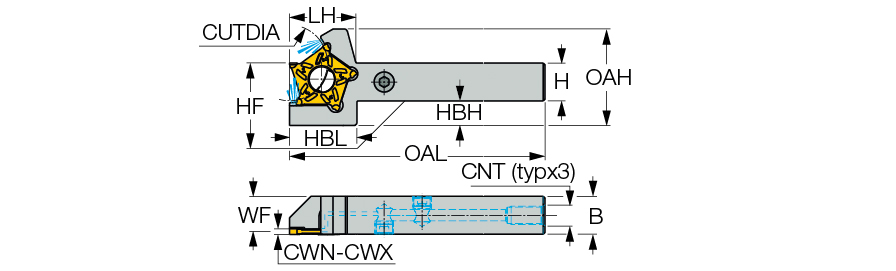

PCHR 19-D22-2-JHP
Parting Off Holder; 4.783″ OAL × 0.079″ CW Min. × 0.094″ CW Max. × 1.26″ OAH ; Steel
| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.079″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.87″ |
| Cutting Width Maximum (CWX) | 0.094″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.783″ | Measurement Type | Inch |
| Head Length (LH) | 1.14″ | Functional Width (WF) | 0.71″ |
| Overall Height (OAH) | 1.26″ | Coolant Entry Thread Size (CNT) | G 1/8-28 |
| Cutting Position | External | Head Bottom Offset Height (HBH) | 0.04″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 2.165″ |
| Shank Standard | Square |
Product Features
| Family Description | Tools with channels for high pressure coolant, carrying 5 cutting edged inserts, used for parting and grooving. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.983
