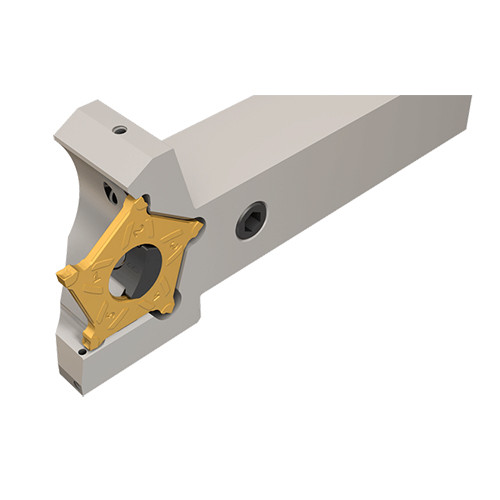

PCHL 12-D22-2-JHP
Parting Off Holder; 101.5 mm OAL × 2 mm CW Min. × 2.4 mm CW Max. × 32 mm OAH ; Steel

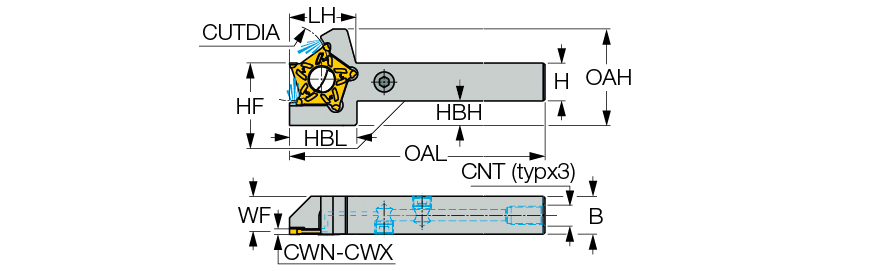

| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 22 mm |
| Cutting Width Maximum (CWX) | 2.4 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 101.5 mm | Measurement Type | Metric |
| Head Length (LH) | 29 mm | Functional Width (WF) | 11 mm |
| Overall Height (OAH) | 32 mm | Coolant Entry Thread Size (CNT) | UNF 5/16-24 |
| Cutting Position | External | Head Bottom Offset Height (HBH) | 9 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 36.1 mm |
| Shank Standard | Square |
Product Features
| Family Description | Tools with channels for high pressure coolant, carrying 5 cutting edged inserts, used for parting and grooving. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.522
