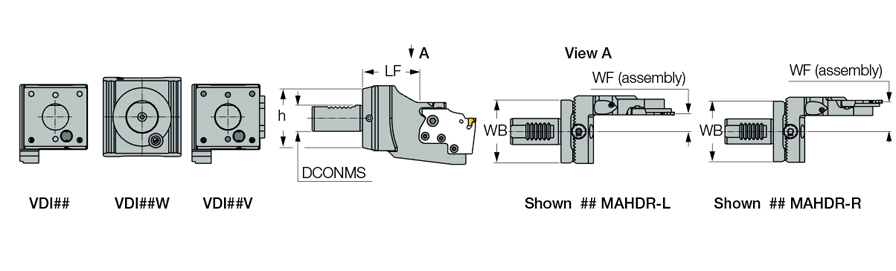

VDI25TF MAHDL-L-XL-JHP

Item # EH234714769

Brand: Iscar

MFG #: 4714769

Legacy Part #: EH234714769

Shank Height (H)

2.409″

Cutting Position

External

Shank Width (B)

8 mm

Application

| Ext. Grooving | Parting |

Body Width (WB)

3.78″

Shank Standard

Square

Cutting Width Minimum (CWN)

1.2 mm

Body Material

Steel

Cutting Width Maximum (CWX)

1.2 mm

Tool Type

Parting & Grooving Tools

Overall Length (OAL)

120 mm

Work Piece Parting Diameter Maximum (CUTDIA)

15 mm

Head Length (LH)

14 mm

Cutting Direction (HAND)

Left Hand

Overall Height (OAH)

9 mm

Measurement Type

Inch

Functional Length (LF)

2.15″

Product Features

Family Description

Toolholders for Star turrets with VDI adaptation and internal coolant supply for MODULAR-GRIP-XL adapters.

Country of Origin

Israel
