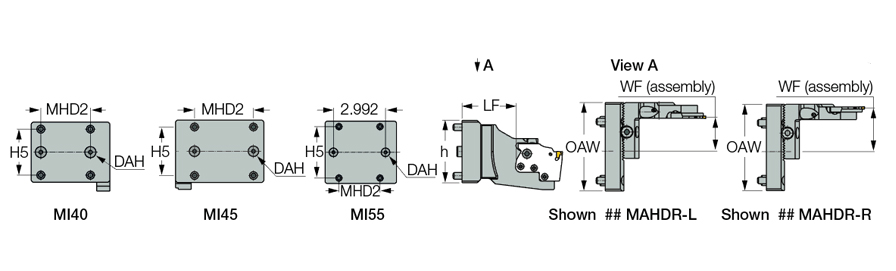

MI45 MAHDR-L-XL-JHP
| Shank Height (H) | 2.835″ | Cutting Position | External |
| Shank Width (B) | 8 mm | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.9 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 1.2 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1.2 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 120 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 15 mm |
| Head Length (LH) | 14 mm | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 9 mm | Measurement Type | Inch |
| Functional Length (LF) | 2.197″ |
Product Features
| Family Description | Toolholders for Miyano adaptation with directed internal coolant for MODULAR-GRIP-XL adapters. | Country of Origin | Israel |
| Remarks | All trademarks and logos are the property of their respective companies |
