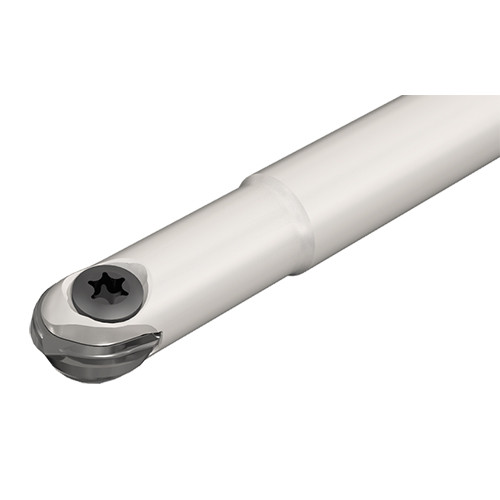

HCM D.38-D-L6.0-C.50
Indexable End Mill; 3/8″ Dia. × 0.26″ LOC × 1/2″ Shank Dia. × 6″ OAL × 2″ LU ; 2 FL ; Round Shank

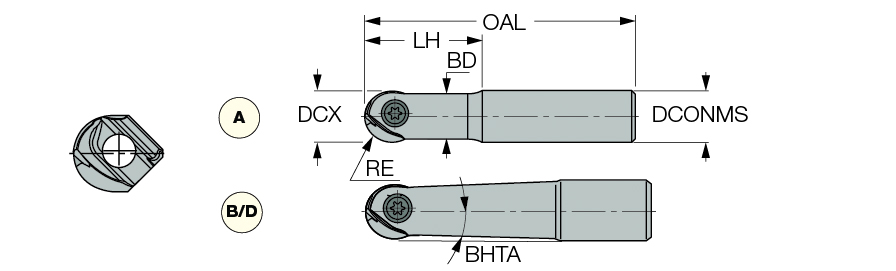

| Cutting Diameter (DC/DCX) | 3/8″ | Usable Length (LU) | 2″ |
| Cutting Diameter (DC) | 3/8″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 1 | Torque (TQ) | 47 lbfxin |
| Depth of Cut Maximum (APMX) | 0.26″ | Corner Radius (RE) | 0.188″ |
| Overall Length (OAL) | 6″ | Body Half Taper Angle (BHTA) | 1.8 Degrees |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Front Type | D |
| Application | | Countersinking | Drill Mill | Profiling | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HBR D.38 | Body Material | Steel |
| Weight of Item (WT) | 0.28 Lbs | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 2″ | Cutting Diameter Maximum (DCX) | 3/8″ |
| Tool Type | Ball nose endmills |
Product Features
| Family Description | Ball nose multifunction endmills D=.375″ (BALLPLUS). Each tool can carry various milling insert geometries | Country of Origin | Israel |
| Remarks | The dimensions are for HBR inserts For adaptation click on More Info |
Shipping Info
Package Weight
0.514
