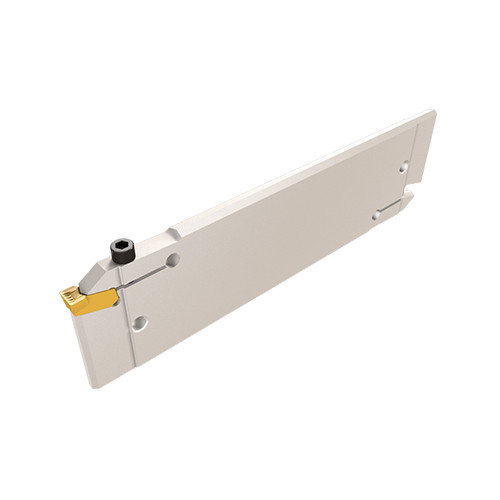

CGHN 53-P8
Parting Off Holder; 10.236″ OAL × 2.48″ Max Depth ; Steel

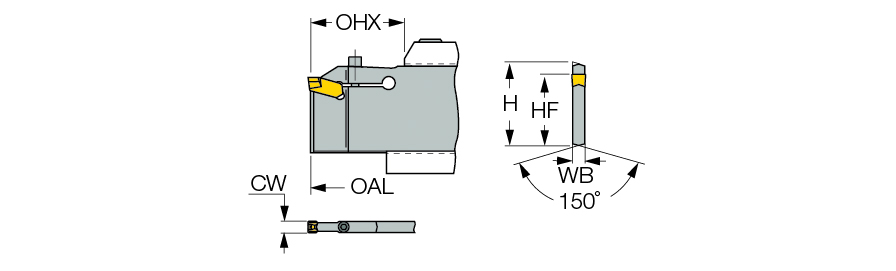

| Shank Height (H) | 2.071″ | Shank Standard | Square |
| Body Width (WB) | 0.2362″ | Body Material | Steel |
| Overall Length (OAL) | 10.236″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Depth Maximum (CDX) | 2.48″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | | Body Width_2 (WB_2) | 0.291″ |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 2.76″ |
Product Features
| Family Description | Blades for deep grooving and turning | Country of Origin | Israel |

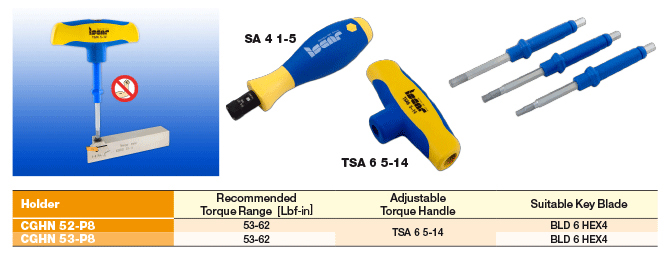

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.686
