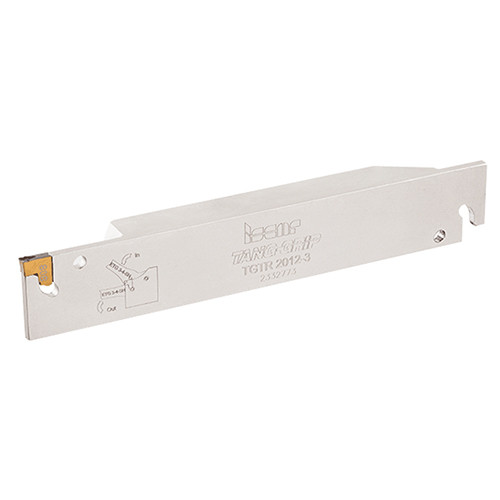

TGTR 25.4-3-IQ-2Z
Integral shank 2 pocket tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

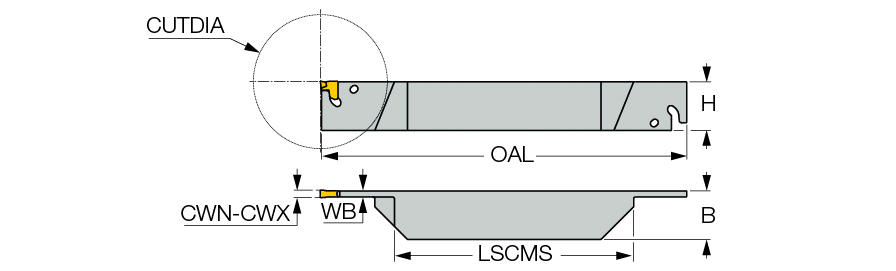

| Shank Height (H) | 1″ | Shank Standard | Square |
| Shank Width (B) | 1″ | Body Material | Steel |
| Body Width (WB) | 0.098″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.11″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.24″ |
| Cutting Width Maximum (CWX) | 0.138″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5.905″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 2.037″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Integral shank 2 pocket tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
3.25000
Package Width
1.50000
Package Height
1.50000
Package Weight
1.115
