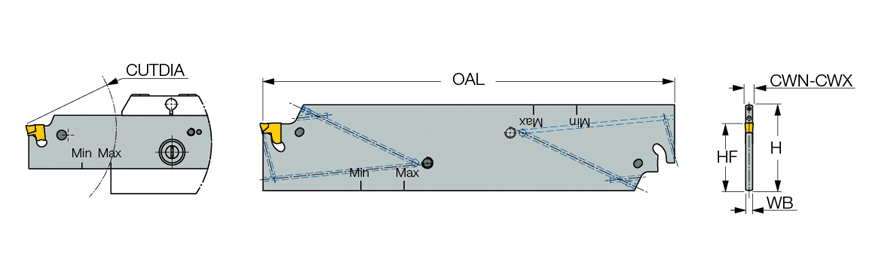

| Shank Height (H) | 1.26″ | Shank Standard | Square |
| Body Width (WB) | 0.205″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.224″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.256″ | Work Piece Parting Diameter Maximum (CUTDIA) | 4.724″ |
| Overall Length (OAL) | 6.299″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 2.362″ |
| Number of Pocket (NOP) | 2 |
Product Features

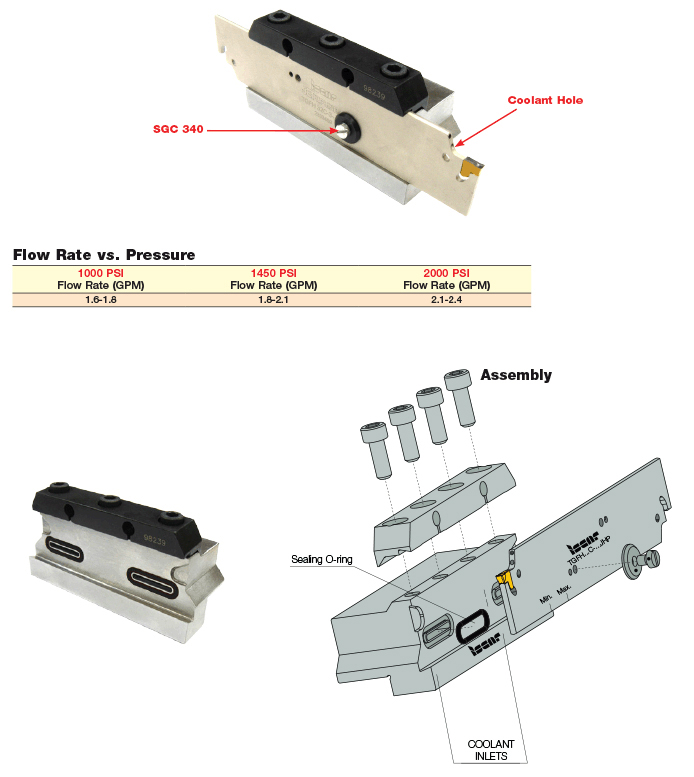

| Family Description | Parting and grooving blades with channels for low and high-pressure coolant carrying TANG-GRIP inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.425
